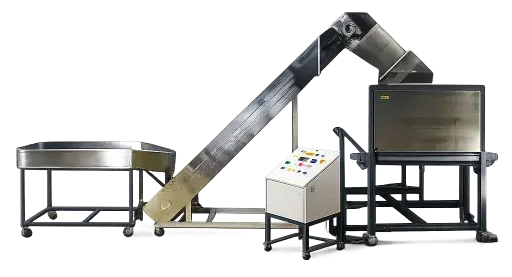

AVANTI ES 5012

AVANTI ES 5012

Automated Shredding Solutions
 Integrated system for Automated feeding, high volume shredding and waste management.

VIDEO DEMO

Watch the ES 5012 in action

VIDEO DEMO

Watch the ES 5012 in action

01

GENERAL FEATURES
  • Application : Multiple Shredder with Hopper/Front Table Feed Electronic waste like cell phones, laptops,chargers, etc. HDPE Bottles, HDPE woven sacks, CardBoard, Paper , any Plastic items.

02

Technical Specifications
MODEL: ES 5012

Cutting Mechanism

Twin Shaft

Shred Chamber(MM)

400x300

Shred size

12x50-100

Shred capacity

1-1.5 Ton /Hr.

Hopper Volume

50l

Waste Bin Volume

320 L

Cutting Speed

17 Meters/Min

Voltage

415 V

Power

12.5HP, 15HP-20HP

Weight

310 Kgs

Dimensions (H×W×D)

1770x2100x800

Motor Start/Off

Auto/Online

Over Load Protector

YES

Over Heat Protector

YES

Customization : Can be customised for high Volume Shredding for shredding of Powder filled sachets, pouches - liquid filled plastic bottles with Conveyer thru feeding and shredding output separation

Working Cycle

Continues

Noise Level

<65DB

P 4 SECURITY

  • Note: Specifications, design and colour of the product subject to change due to continuous development of the product.
