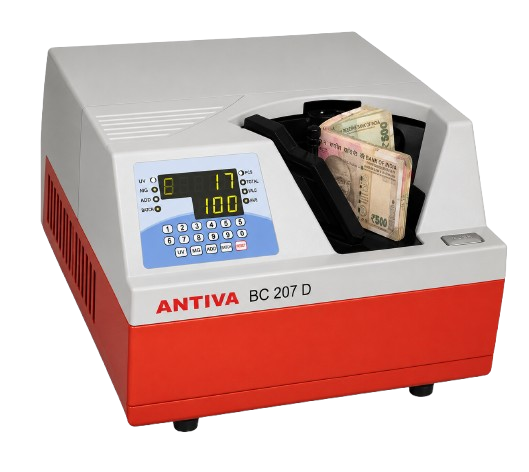

ANTIVA BC 207 D

ANTIVA BC 207 D

01

Key Features
  • Can count note size length : 90-200 mm, width / height : 50 —100 mm
  • Heavy duty model, can count all types of notes accurately.
  • Special individual add / accumulation memory for all modes.
  • Special ADD mode & accumulate up to 5 digits i.e. 99,999
  • Vacuum Suction based technology with five suction spindles
  • Useful for bundled note or loose note counting
  • Auto and manual control of counting
  • Check, Batch, Free and Stamp mode of counting
  • Special Add mode
  • Counterfeit currency detection (optional)
  • Advanced self diagnostic mode
  • Low noise operation
  • High reliability and versatility
  • Special dust collecting filters
  • Steel Body with ABS top cover
  • Special one inch four digits turret/ customer display

02

Technical Specifications

Counting System

Vacuum Suction Type

Note Holding Capacity

200 notes

Counting Speed

100 notes / 3 sec

Counter

Advanced Electronic Electromech Counter

Dimension (W x D x H) in mm

330 x 395 x 205 (including castors)

Weight

22.5 kg

Working Voltage

AC 200 — 240 V, frequency — 50 Hz

Vacuum pump

230v, 50Hz; 250 / 340 watts (optional)

Spindle motor

230v; 50Hz; 1440 rpm, 25 watts. (optional 1100 available)

Holder Motor (Gear)

230v; 50Hz; 60 rpm, 25 watts. (optional 1100 available)

Power Consumption

Operating 275W (Approx), standby 7 W (Approx.)

Relative Humidity

10 to 75%

Temperature

0-50 deg C

Noise Level

70 db (Approx)

  • Warranty: One Year on Machine (Subject to terms of use)
  • Note: Specifications, design and colour of the product subject to change due to continuous development of the product.
